Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls

商品の詳細:

Place of Origin:	Jinan city,Shandong province,China
ブランド名:	ZW
証明:	ISO9001:2008
Model Number:	forged ball,grinding media ball

お支払配送条件:

Minimum Order Quantity:	1 tons
価格:	交渉可能
Packaging Details:	container bags ,steel drum
Delivery Time:	3 days after order confirmation
Supply Ability:	Annual output 80000 tons

連絡先

詳細製品概要

Product Name:	Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls	Applicable Industries:	Energy & Mining
Packaging Details:	BAGS OR STEEL BRUMS	Port of dispatch:	QINGDAO PORT, TIANJIN PORT
Customization Options:	logo,packing,Graphic	Materials:	60Mn,B2,B3,B6,C45
Style:	Forging and Casting	Warranty:	1 year

Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls

Name: Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls
Brand: Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd
SKU: forged ball,grinding media ball
Price: 725.00 USD
Availability: InStock

Product

Grinding steel balls‌ are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials

1) No deformation
2) High hardness Good wear resistant
3) Size:Dia12mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.

Forged Ball Details:

The Forged Grinding Ball product, known as High Quality China Factory Iron 40mm 50mm 60mm Forged Steel Grinding Balls, is a top-quality product designed to meet the needs of various industries. With a focus on delivering superior performance and durability, these Forged Carbon Balls are an excellent choice for grinding applications.

Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls 0

Material	Chemical Elements
Material	C	Si	Mn	P/S	Cr	Hardness (HRC)
45#	0.42-0.50	0.17-0.37	0.5-0.8	<0.035	<0.25	60-65
60MN	0.55-0.65	0.17-0.37	0.7-1.0	<0.04	<0.25	58-63
B2	0.72-0.85	0.17-0.37	0.7-1.0	<0.04	0.4-0.6	55-58
B3	0.58-0.66	1.3-1.9	0.65-0.8	<0.025	0.7-0.9	56-65
B6	0.97-1.03	0.2-0.3	1.0-1.1	<0.025	0.5-0.6	61-65

Material	25mm-50mm HRC		60mm-90mm HRC		100mm-125mm HRC		130-150mm HRC
Material	Surface	Core	Surface	Core	Surface	Core	Surface	Core
C45	55-58	55-58	50-68	23-30	48-52	22-26	48-52	22-25
60Mn	58-62	55-60	58-62	30-36	57-61	26-32	57-61	26-30
B2	60-64	58-64	57-64	45-60	55-60	38-48	55-60	38-42
B3	62-65	60-65	60-65	58-65	56-65	50-62	56-63	50-55
B6	62-65	60-65	61-65	58-65	60-63	50-62	61-63	50-55

Casting Ball

‌Cast steel balls‌: Produced by casting process, including high chromium steel balls, medium chromium steel balls, low chromium steel balls, etc., suitable for cement, thermal power generation, metallurgy and mining industries‌

A casting ball, also called a casting grinding ball, is made from scrap steel, scrap metal, and other trashed materials. The above mentioned materials are highly molten and conduct a continuous current after being heated. During the smelting stage, a large amount of metal elements such as vanadium, iron and manganese are first added to the flue gas to achieve the desired and predetermined yield. These elements can then pour the super-molten iron into a production line model of a steelmaking plant.

Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls 1

Cast Grinding Steel Ball Features

1,The raw materials are all bearing steel scraps, which contain copper, molybdenum, nickel and other precious metal elements, which can effectively improve the matrix structure of the steel ball.

2,Our products are produced by medium frequency electric furnace which can effectively ensures the stability of the material. Balls are not easy to peel off and deform during use. Even it can keep bright and round after long time running.

3,The most advanced large-scale automatic oil quenching production line is adopted for heat treatment, which ensures the good hardness and uniformity of the products.

Production Line

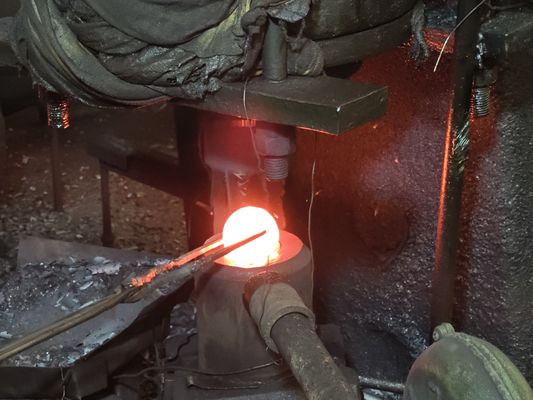

1) Traditional Forged

Raw material →Cutting →Heating → Water quenching → Tempering

Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls 4

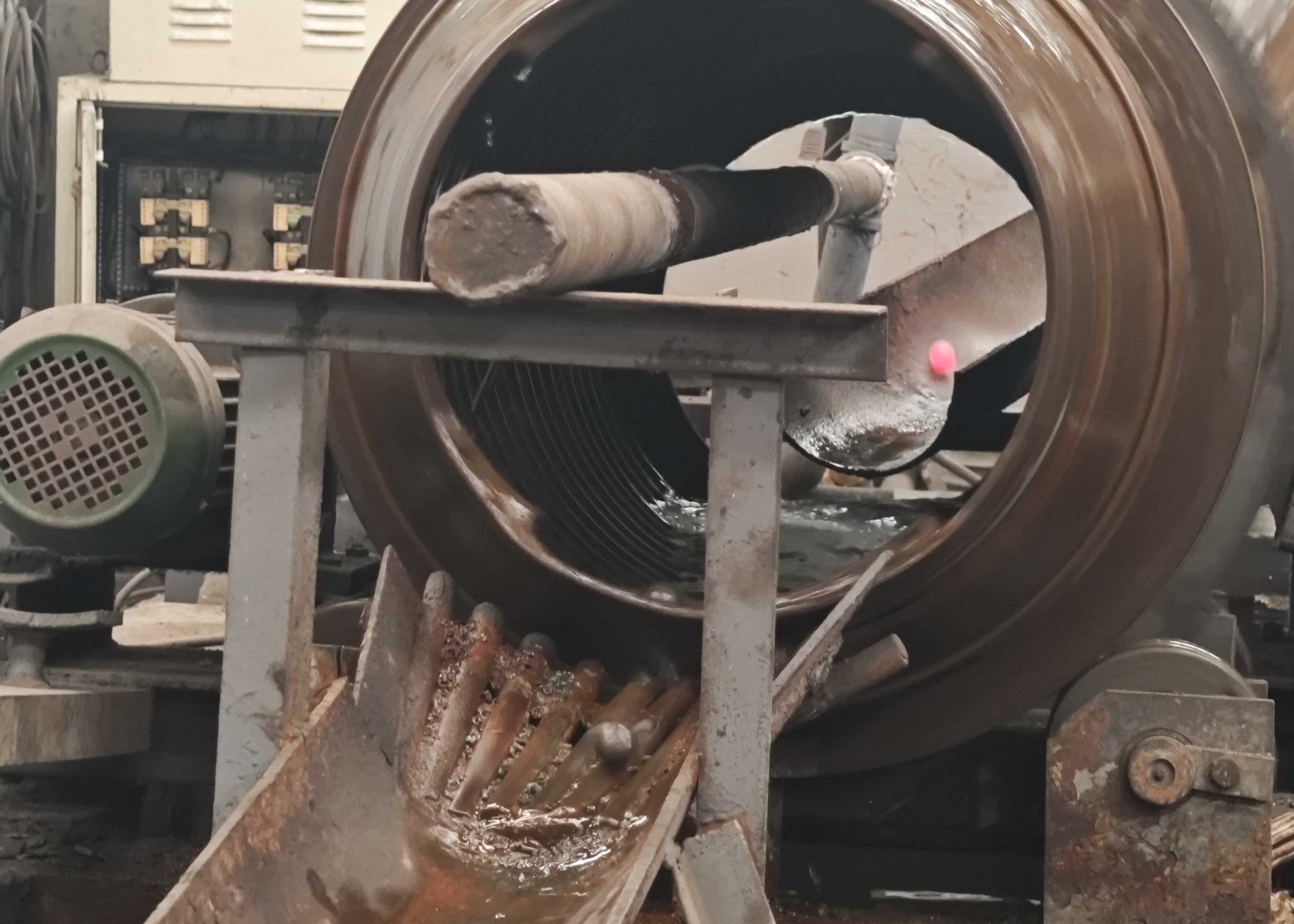

2) Auto Hot Rolling

Raw material →Hot Rolling Mill → Water Quenching → Tempering

Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls 5

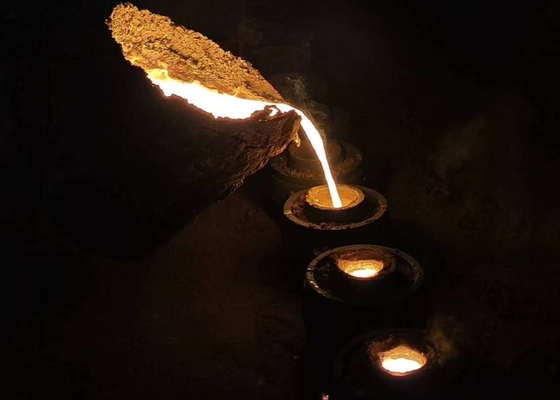

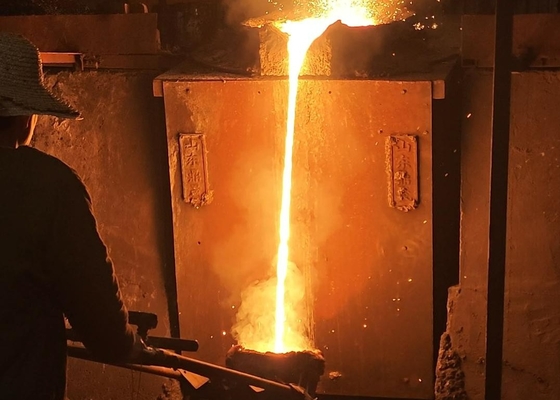

3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection

Manufacturer Supplier Hot Selling and Wear-Resistant Grinding Balls 6

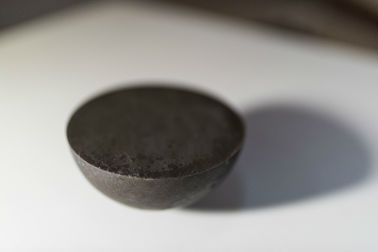

Test

Packing & Shipping

Steel drum (800-950kg per drum)

Container Bag (1000kg per bag)

Two drums with Pallet

Company Profile

Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.

Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .

Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.

Question and Answer

Q. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.

Q.What’s the delivery time?
A : 5-10 work days after receiving client’s payment

Q.Do you have any timely technology supports?
A: We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (whats, skype, phone)
