| 起源の場所: | チーナン都市、山東省、中国 |
| ブランド名: | ZW |
| 証明: | ISO9001:2008 |
| モデル番号: | 45#,60Mn B2,B3,B4,B6 |
| 最小注文数量: | 25トン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 容器袋、スチール ドラム |
| 受渡し時間: | 前進の後の1-3週 |
| 供給の能力: | 年産50000トン |
| リーディングタイム: | 契約によると | 製品名: | ボールミール 磨きメディア ボール価格 20-180mm 鋳造鋼ボール 鉱山用 磨き水泥用 |
|---|---|---|---|
| 材料: | 鋼鉄 | 問い合わせ: | info@zwgrindingball.com について |
| 生産プロセス: | 鍛造とローリング | カスタマイズされたサポート: | OEM、ODM |
| 品質管理: | 厳格な品質管理システム | 使用法: | セメント工場、発電所 |
| ハイライト: | forged steel grinding balls for mining,20-180mm grinding media balls,cement grinding forged steel balls |
||

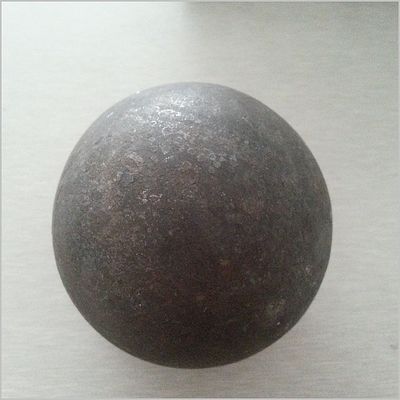

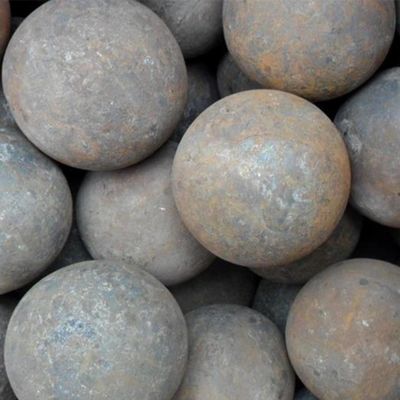

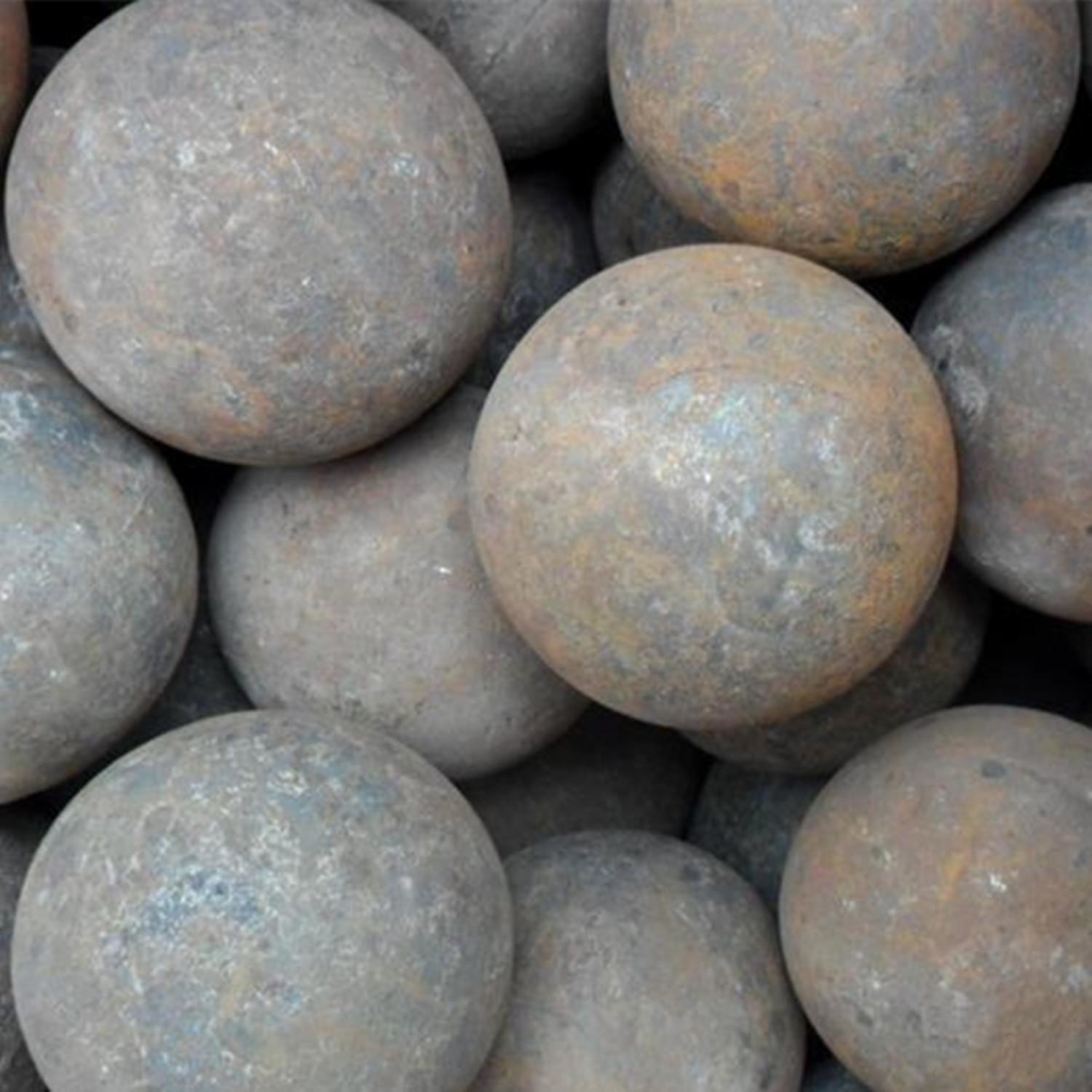

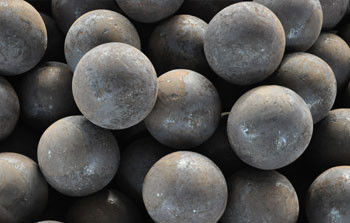

Ball Mill Grinding Media Ball Price 20-180mm Forged Steel Ball Used for Mining Grinding Cement
Heating the customed steel until the temperature reaches 1100C( 土50C) in the way of hot rolling and forging,the rollig forging machinery will put pressure on the metal blank and producing a grinding ball with certain mechanical property, shape and size . This is our processing methods of the grinding balls.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
| Testing | Jinan Zhongwei established in 2000, leading manufacturer and exporter of grinding balls in China |
| Production Capacity | Annual output is 50000 tons to 80000 tons |
| Breakage Guarantee | ≤0.5-1.0% |
| Impact | >12 |
| Exported Countries | 20 more countries including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
| Wear Resistance | Better than cast ball with longer service life |
| Impact Toughness | >12 joules |
| Surface Quality | Smooth surface without pouring mouth, sand hole, and ring band |
| Breakage Rate | <0.5% |
| Product Name | Hot Rolling Forged Forging Grinding Media Steel Ball Manufacturer Factory for Sale Grinding Gold Mine Ore Ball Mill |
ZW Forged Grinding Ball is a high-quality product designed for various industrial applications. The product is suitable for use in a wide range of scenarios due to its durability, reliability, and performance. Here are some Product Application Occasions and Scenarios for the Forged Grinding Ball:
They have great wear resistance, difficult deformation and less broken, uniform hardness distribution, high impact toughness( over 12j/cm2). Mainly suitable for industries such as mining, steel, chemical industry, cement plants, power plants, ball coal machine, semi-automatic ball mills, and ball mills,etc.
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Product Packaging:
Each Forged Grinding Ball is carefully packed in individual boxes to ensure safe transportation and handling. The boxes are labeled with product information and specifications for easy identification.
Shipping:
Our Forged Grinding Balls are shipped in sturdy cartons to protect them from damage during transit. We work with trusted shipping partners to ensure timely delivery to our customers.
